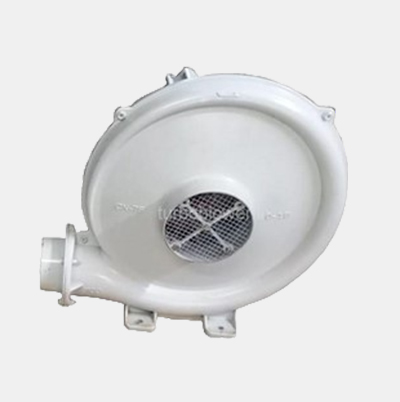

Centrifugal Blower Aluminium Casting Type
| Item : | 3 | Model : | TBM-YBCB-CX-75A |
| Rated Output : | 0.75kw / 1hp (kw) | Voltage : | 220-240 (V) |
| Current : | 5.7 (A) | Voltage : | 345-415 (V) |
| Max Volume : | 780-950 m3/hr (M3/min) | Noise : | 76 Db (Db) |
| Weight : | 14 kg (kg) | ||
| SuctionFilter | 4" |
Description
- Light weight, medium pressure, big volume, low noise.
- Aluminum alloy material, greatly reduce weight, achieve the goal of light weight.
- Design full close outer fan type aluminum frame, motor axis of special design, can be suitable for long time use, high temperature resistance 100°C.
- Special blade design, unilateral opening without blocking.
- Special air damper, can adjust the airflow, easy to operate CX applicable.
- The air inlet and outlet of the fan are designed independently, optional reducing pipe,docking use,the air outlet can choose four directions,the motor can be left or right.
Features :
- Printing Machines
- Burning Machines
- Plastic Extruders, Laminating, Film Making Machines
- Uniform Temperature Equipment
- Household Machines
- Dust Collectors
- Textile Machines
- Pollution Machines
- Hot Air Blowers
- Dryers Machines
- Incinerators
- Machinery for the Food and Beverage Industries
- Machinery for Cooling
- Woodworking Machines
- Grain Elevators
Applications :
