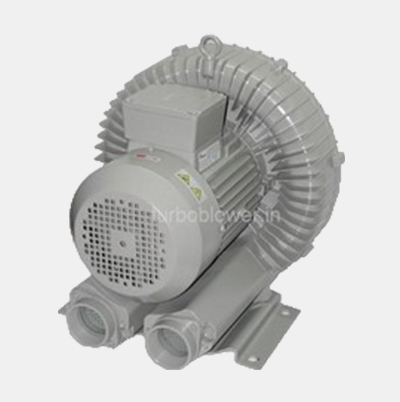

Turbo Ring Blower (Single Stage)

Item : E-25 Model : TBM-439
Rated Output : 2.2kw / 3hp (kw) Voltage : 220-240 (V)
Current : 7.8 (A) Voltage : 345-415 (V)
Max Volume : 255 m3/hr (M3/min) Noise : 70 Db (Db)
Weight : 32 kg (kg)
SuctionFilter 2"

Description

The use of Turbo Ring Blowers is common in machine-building as high pressure ventilator, vacuum pump, air pump, booster, low pressure compressor and oil-free compressor. The applications are unlimited like aireting, dust cleaning, vacuum lifting, vacuum tables, blowing off, pneumatic transport, cooling and vacuum molding.
Turbo Die cast aluminium Ring Blowers are robust units used for versatile applications. These blowers stand out for their durability, due to the robust aluminium design, which makes them highly resistant against corrosion. Other advantages of Turbo Ring Blowers ventilators include:

  •   Almost completely maintenance free
  •   Have a wide range of performance
  •   Robust yet light weight
  •   Reliability - Built to last
  •   50/60 Hz Voltage range motors
  •   Low level of noise
  •   Easy installation
  •   No vibration, complete dynamic stability
  •   Pulsation free discharge
  •   Simple and minimal maintenance
  •   Higher Pressure Ratios
  •   Cooler Running Bearings
  •   Longer Grease Life
  •   100% Oil Free Air
  •   Suitable to environment protection
  •   Small dimensions

Installation Dimension of Single stage Blowers model 429-439
